Heavy Nuts
Product Information

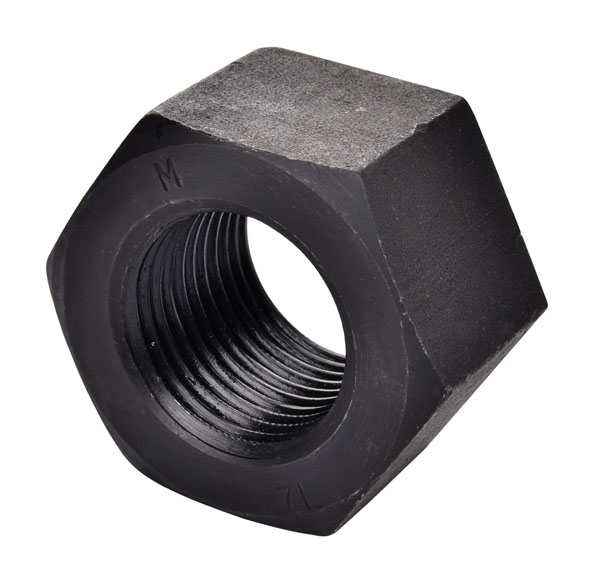

Heavy Nuts

A precision machined, heavy duty nut. Heat treated to provide maximum durability during repetitive operations. Washer face prevents corners from digging in.

Heat treated steel black oxide finish
Heavy Nuts
Part
No.		Ref.
No.		 Thread
Size		 Hex
Size		 Length Net Lbs.
Per 100
*18001 14-HN 1/4-20 1/2 15/64 1-1/2
*18002 56-HN 5/16-18 9/16 19/64 2
*18003 38-HN 3/8-16 11/16 23/64 3-1/2
18004 76-HN 7/16-14 3/4 27/64 4
*18005 12-HN 1/2-13 7/8 31/64 7
*18006 58-HN 5/8-11 1-1/16 39/64 12
*18007 34-HN 3/4-10 1-1/4 47/64 20
*18008 78-HN 7/8-9 1-7/16 55/64 29
*18009 10-HN 1"-8 1-5/8 63/64 40
18011   1-1/4-7 1-7/8 1-7/32 66

* Conform to TCMAI Standards
