Aluminum Blocks with Steel Clamps (Deluxe Clamping Kits)
Product Information

Aluminum Blocks with Steel Clamps

  • 52 pieces of Set-up Equipment in a heavy duty metal holder
  • For machines with table slots from 7/16" thru 13/16"
  • With steel or aluminum Step Blocks
  • Mounts on the machine, on the wall or sets on a bench
  • When using step blocks with clamps, be certain clamp teeth are fully engaged with teeth on step block to prevent damage to block or clamp.

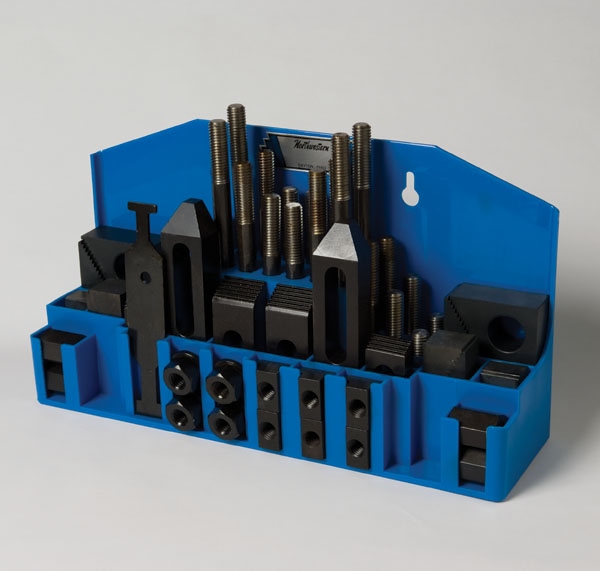

Click Image to Enlarge
Aluminum Steel Blocks and Clamps
Kit
No.		Stud
Size		Table
Slot		T-Nut
Part No.		T-Nut & Stud
Set No.		Step Clamps
2 Each		Step Blocks
2 Each		Net Lbs.
Per Kit
Kits With Standard Blocks 1" Wide
11052 3/8-16 7/16 47002 40002 12101,12102,12103 36001,36002,36003 16
11053 3/8-16 1/2 47003 47003 12101,12102,12103 36001,36002,36003 16
11054 3/8/16 9/16 47004 47004 12101,12102,12103 36001,36002,36003 17
11055 1/2-13 9/16 47005 47005 12104,12105,12106 36001,36002,36003 21
11056 1/2-13 5/8 47006 47006 12104,12105,12106 36001,36002,36003 21
11057 1/2-13 11/16 47007 47007 12104,12105,12106 36001,36002,36003 21
11058 5/8-11 11/16 47008 47008 12107,12108,12109 36001,36002,36003 28
11059 5/8-11 3/4 47009 47009 12107,12108,12109 36001,36002,36003 28
11060 5/8-11 13/16 47010 47010 12107,12108,12109 36001,36002,36003 29
Kits With Heavy Duty Blocks 1-1/2" Wide
11061 1/2-13 9/16 64006 64066 12104,12105,12106 36004,36005,36006 35
11062 1/2-13 5/8 64007 64067 12104,12105,12106 36004,36005,36006 35
11063 1/2-13 11/16 64008 64068 12104,12105,12106 36004,36005,36006 36
11064 5/8-11 11/16 64009 64069 12107,12108,12109 36004,36005,36006 41
11065 5/8-11 3/4 64010 64070 12107,12108,12109 36004,36005,36006 41
11066 5/8-11 13/16 64011 64071 12107,12108,12109 36004,36005,36006 42
