Pitbull Clamps

The Pitbull Clamp is a revolutionary new fixture clamp with positive force and a low gripping profile. High vertical and horizontal clamping forces are generated, considering the size of the Pitbull Clamps. It uses a standard cap screw and an oil resistant O-ring. The Pitbull Clamp is available in 5 sizes and several styles. A tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the work piece.

Pitbull is a registered trademark of the Pitbull Clamp Co, Inc.

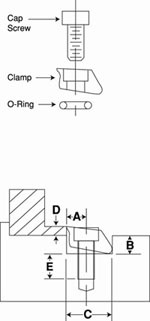

Click Image to Enlarge


Pitbull Clamps
Part
No.		 Description A B C D* E Clamp
Width		 Screw
Size		 Torque
(Ft./Lbs)		 Holding
Force
(Lbs)		 Total
Throw		 Clamps
Per Pack
81155 Tool Steel, Knife Edge .150 .140 .375 .075 .260 .375 4-40 1.30 650 .0075 8
81156 Tool Steel, Blunt Edge .150 .140 .375 .075 .260 .375 4-40 1.30 650 .0075 8
81157 Brass, Blunt Edge .150 .140 .375 .075 .220 .375 4-40 .41 200 .0075 8
81158 Tool Steel, Knife Edge .200 .187 .500 .100 .390 .500 8-32 3.70 1,500 .0160 8
81159 Tool Steel, Blunt Edge .200 .187 .500 .100 .390 .500 8-32 3.70 1,500 .0160 8
81160 Brass, Blunt Edge .200 .187 .500 .100 .340 .500 8-32 2.0 400 .0160 8
81161 Tool Steel, Knife Edge .300 .280 .750 .150 .570 .750 1/4-20 14.50 3,600 .0240 6
81162 Tool Steel, Blunt Edge .300 .280 .750 .150 .570 .750 1/4-20 14.50 3,600 .0240 6
81163 Brass, Blunt Edge .300 .280 .750 .150 .440 .750 1/4-20 4.10 950 .0240 6
81164 Tool Steel, Knife Edge .400 .450 1.000 .250 .710 1.000 3/8-16 30.00 6,000 .0500 4
81165 Tool Steel, Blunt Edge .400 .450 1.000 .250 .710 1.000 3/8-16 30.00 6,000 .0500 4
81166 Tool Steel, Knife Edge .600 .640 1.500 .375 .770 1.500 1/2-13 108.30 12,000 .0750 2
81167 Tool Steel, Blunt Edge .600 .640 1.500 .375 .770 1.500 1/2-13 108.30 12,000 .0750 2

D* - Clamp Height
