Quarter Turn Screws
Product Information

Regular Flat Washers

Material: 18-8 Stainless Steel

Made in USA

Click Image to Enlarge

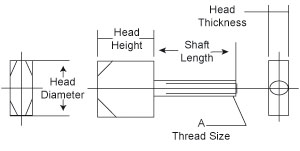

Quarter Turn Screws
Part
No.		 Thread
Size		 Overall
Length		 Length
(Front to Back)		 Overall
Height		 Base
Thickness
81012 10-24 1 1/2 1/2 3/16
81013 10-32 1 1/2 1/2 3/16
81014 10-32 1-1/2 1/2 1/2 3/16
81015 14/20 1-1/4 3/4 5/8 1/4
81016 1/4-20 1-3/4 3/4 5/8 1/4
81017 5/16-18 1-1/2 1 3/4 5/16
81018 5/16-18 2 1 3/4 5/16
81019 3/8-16 1-1/2 1 1 3/8
81020 3/8-16 2 1 1 3/8
81021 1/2-13 1-3/4 1-1/4 1 1/2
81022 1/2-13 2-1/4 1-1/4 1 1/2
