Knurled Head Toggle Screws
Product Information

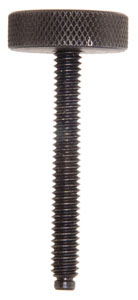

Knurled Head Toggle Screws

Delrin is resistant to oils, cutting fluids and most chemicals

Heat Treated Steel Black Oxide Finish
Click Image to Enlarge
Knurled Head Toggle Screws
Part No.
(Steel Pad)		Part No.
(Delrin Pad)		AB C D E Net Lbs.
Per 100
44601 44651 1/4-20 1-1/2 5/16 1" .185 8
44602 44652 1/4-20 2" 5/16 1" .185 9
44603   5/16-18 1-1/2 3/8 1-1/8 .245 13
44604   5/16-18 2" 3/8 1-1/8 .245 14
44605   5/16-18 2-1/2 3/8 1-1/8 .245 15
44606   3/8-16 1-1/2 7/16 1-1/4 .297 19
44608   3/8-16 2-1/2 7/16 1-1/4 .297 21
44609   3/8-16 3" 7/16 1-1/4 .297 22
44611   1/2-13 2" 1/2 1-1/4 .405 26
44613   1/2-13 3" 1/2 1-1/4 .405 31

All Parts Conform to TCMAI Standards
