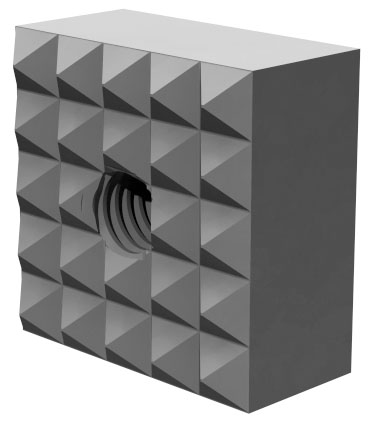

Steel Serrated - Tapped Hole
Product Information

Made from M-2 high speed steel.

Hardened for Rc 60/62 with black oxide finish.

Serrated for sure holing in tough applications.

Thru-hole tap.

Other sizes and metric styles available.

Click Image to Enlarge


Steel Serrated - Counter Bored Hole
Part
No.		 Square B
Height		 Tap Tooth
Pattern
82006 3/8 3/8 #10-32 EF
82007 3/8 1/2 #10-32 EF
82008 1/2 3/8 #10-32 Fine
82009 1/2 1/2 #10-32 Fine
82010 5/8 3/8 #10-32 Fine
82011 5/8 1/2 #10-32 Fine
82012 3/4 3/8 #10-32 Fine
82013 3/4 1/2 #10-32 Fine
82014 1 3/8 1/4-28 Fine
82015 1 1/2 1/4-28 Fine
