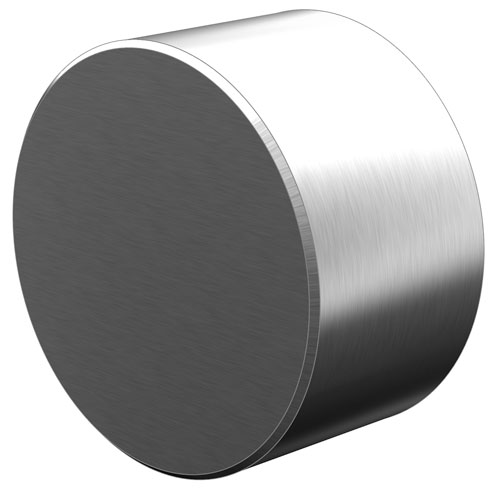

Rest Pads, Stainless Steel - Trapped
Product Information

Made from 17-4 stainless steel and heat treated to Rc 43/46.

Provides high strength as well as protection against chemical and environmental corrosion.

Blind hold tap for back side mounting.

Metric sizes available.

Click Image to Enlarge

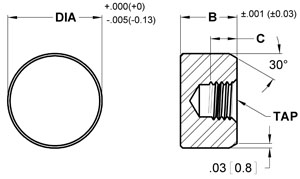

Rest Pads, Stainless Steel - Trapped
Part
No.		 Dia. B
Height		 Tap C Tap
Depth
82056 5/16 3/8 #8-32 3/16
82057 5/16 1/2 #8-32 5/16
82058 3/8 3/8 #10-32 3/16
82059 3/8 1/2 #10-32 5/16
82060 1/2 3/8 #10-32 3/16
82061 1/2 1/2 #10-32 5/16
82062 5/8 3/8 1/4-28 3/16
82063 5/8 1/2 1/4-28 5/16
82064 3/4 3/8 1/4-28 3/16
82065 3/4 1/2 1/4-28 5/16
82066 1" 3/8 1/4-28 5/16
82067 1" 1/2 1/4-28 5/16
