Our line of Press-Thru (trade marked) spring and ball plungers have the same dimensions, spring pressures, and materials as our standard press fit product line.
Press-Thru™ Spring Plungers

Our line of Press-Thru (trade marked) spring and ball plungers have the same dimensions, spring pressures, and materials as our standard press fit product line.

Press Thru™ Spring Plungers With Extended Travel
Product Information

Easy installation. Use in wood, soft plastic or aluminum applications.

Steel bodies are made of 12L14 material with a black oxide finish.

All stainless steel parts are made of 303 stainless steel.

They are made oversized to secure firmly into the hole.
Click Image to Enlarge

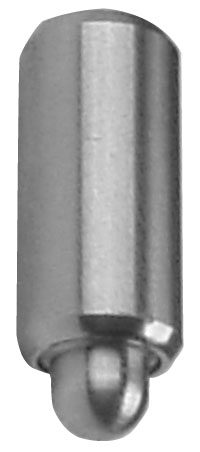

Press-Thru™ Spring Plungers with Extended Travel
Heat Treated Steel Nose - Black Oxide Finish/Stainless Nose
Steel
Part
No.		Stainless
Steel
Part No.		 End Pressure
Lbs.
Start		 End Pressure
Lbs.
Full		 A B C D E F
10701EX 10701SS-EX 0.5 1.25 .125 .252 .093 .070 .187 .032
10701AEX 10701ASS-EX 0.75 1.5 .157 .330 .125 .093 .215 .035
10702EX 10702SS-EX 1.25 3.0 .188 .405 .156 .121 .248 .035
10703EX 10703SS-EX 1.5 6.0 .250 .481 .203 .168 .310 .044
10704EX 10704SS-EX 1.75 8.0 .312 .643 .250 .188 .375 .045
10705EX 10705SS-EX 2.0 9.0 .375 .785 .312 .234 .498 .078
10706EX 10706SS-EX 5.9 21.0 .500 1.13 .375 .332 .685 .088
Steel Body and Stainless with Brown Delrin® Nose
10708EX 10708SS-EX 0.5 1.25 .125 .252 .093 .070 .187 .032
10708AEX 10708ASS-EX 0.75 1.5 .157 .330 .125 .093 .215 .035
10709EX 10709SS-EX 1.25 3.0 .188 .405 .156 .121 .248 .035
10710EX 10710SS-EX 1.5 6.0 .250 .481 .203 .168 .310 .044
10711EX 10711SS-EX 1.75 8.0 .312 .643 .250 .188 .375 .045
10712EX 10712SS-EX 2.0 9.0 .375 .785 .312 .234 .498 .078
10713EX 10713SS-EX 5.9 21.0 .500 1.13 .375 .332 .685 .088
