Our line of Press-Thru (trade marked) spring and ball plungers have the same dimensions, spring pressures, and materials as our standard press fit product line.
Press-Thru™ Spring Plungers

Our line of Press-Thru (trade marked) spring and ball plungers have the same dimensions, spring pressures, and materials as our standard press fit product line.

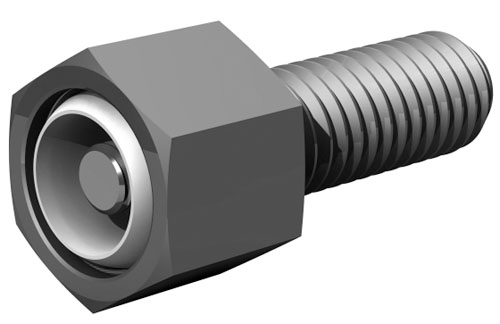

Hex Head Design
Product Information

The replaceable pad swivels to allow for self-alignment on uneven surfaces.

Cylindrical body allows for installation in tight areas.

The housing is tapped for backside fastening.

The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw.

The pad can be replaced when worn or a different style pad is required.

The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish.

The parts below are for the Swivot assembly only and do not include a pad.

Pads must be ordered separately.

Metric sizes are available.

Click Image to Enlarge

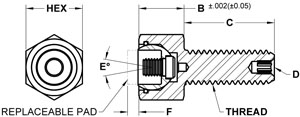

Threaded Body Design
Part
No.		 Thread B Head
Height		 C Thread
Length		 D Int.
Hex		 E Degree
Swivel		 F* Stand
Off 1		 F* Stand
Off 2		 Ball
Diameter		 Replaceable
Pad
Dia. **		 Hex Size Load
Rating
lbs
82101 3/8-16 1/2 1/2 1/8 20 1/8 1/4 1/2 3/8 5/8 3,446
82102 3/8-16 1/2 1 1/8 20 1/8 1/4 1/2 3/8 5/8 3,446
82103 3/8-16 1/2 1-1/2 1/8 20 1/8 1/4 1/2 3/8 5/8 3,446
82104 1/2-13 5/8 1 3/16 24 1/8 1/4 5/8 1/2 13/16 5,937
82105 1/2-13 5/8 1-1/2 3/16 24 1/8 1/4 5/8 1/2 13/16 5,937
82106 5/8-11 11/16 1 1/4 22 1/8 1/4 3/4 5/8 15/16 9,932
82107 5/8-11 11/16 2 1/4 22 1/8 1/4 3/4 5/8 15/16 9,932
82108 3/4-10 3/4 1 5/16 20 1/8 1/4 7/8 3/4 1-1/8 14,862
82109 3/4-10 3/4 2-1/2 5/16 20 1/8 1/4 7/8 3/4 1-1/8 14,862
82110 1-8 1 2 3/8 20 1/8 1/4 1-1/8 1 1-1/2 28,158
82111 1-8 1 4 3/8 20 1/8 1/4 1-1/8 1 1-1/2 28,158

* F1 - Stand off with 3/8 height pad; F2 - Stand off with 1/2 height pad.

** Select any fixed gripper or rest pad with the proper diameter and tapped hole.
